Excavators & Dump Trucks For Sale

Explore excavators and dump trucks available for sale through Accent Elite Solutions Inc.

Customers may enquire about available equipment or request sourcing assistance based on their preferred make, model, capacity, manufacturing year, condition, operating hours, mileage, and budget.

FEATURED EQUIPMENT

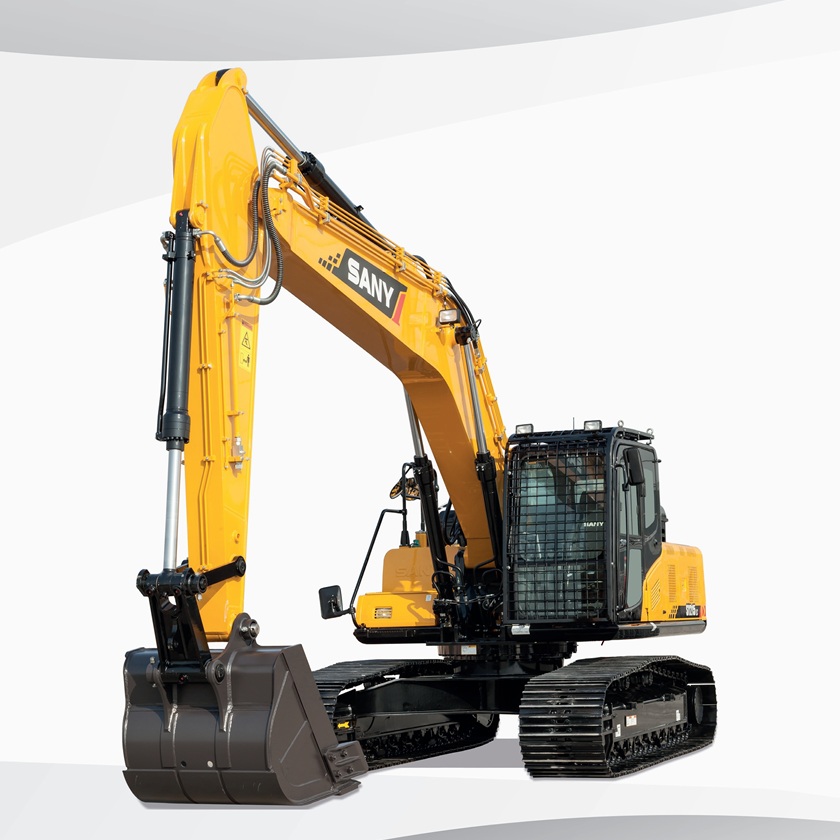

SANY SY215C
Hydraulic Excavator

A powerful 22.6-ton crawler excavator equipped with a Cummins QSB6.7 engine and designed for demanding excavation, earthmoving and construction applications.

ENGINE

Cummins QSB6.7

POWER

122 KW

OPERATING WEIGHT

22,600 KG

DIGGING FORCE

138 kN

MAX. REACH

9,950 MM

ENGINE

6,600 MM

Request A Quote
View Specifications

Built To Perform:

The SANY SY215C is a 22.6-ton hydraulic excavator powered by a Cummins QSB6.7 engine delivering 122 kW at 2,000 rpm.

With a maximum digging reach of 9,950 mm, maximum digging depth of 6,600 mm and bucket digging force of 138 kN, the machine is suited to demanding excavation and earthmoving operations.

Suitable For:
  • Earth Moving
  • Excavation
  • Road Construction
  • Building Construction
  • Drainage & Civil Works
  • Land Clearing
  • Mining and Quarry Operations

Technical Specifications:

ENGINE:
ENGINE
ModelCummins QSB6.7
Displacement6.7 L
Engine power at rated engine speed122 kW / 2,000 rpm
Max. Torque732 N·m / 1,500 rpm
HYDRAULIC SYSTEM
TypePositive flow system
Number of selectable working modes4
Main pump typeVariable-capacity piston pump
Maximum flow2 × 222 L/min
Travel hydraulic motor2 × axial piston motors with parking brake
Swing hydraulic motor1 × axial piston motor with swing holding brake
Implement circuit relief pressure34.3 MPa
Travel circuit relief pressure34.3 MPa
Swing circuit relief pressure27.5 MPa
Heavy lift circuit relief pressure34.3 MPa
Pilot circuit relief pressure3.9 MPa
Boom cylinder diameter × stroke120 × 1,285 mm
Arm cylinder diameter × stroke135 × 1,490 mm
Bucket cylinder diameter × stroke115 × 1,120 mm
Blade cylinder diameter × strokeNot specified
HYDRAULIC SYSTEM
Type Positive flow system
Number of selectable working modes 4
Main pump type Variable-capacity piston pump
Maximum flow 2 × 222 L/min
Travel hydraulic motor 2 × axial piston motors with parking brake
Swing hydraulic motor 1 × axial piston motor with swing holding brake
Implement circuit relief pressure 34.3 MPa
Travel circuit relief pressure 34.3 MPa
Swing circuit relief pressure 27.5 MPa
Heavy lift circuit relief pressure 34.3 MPa
Pilot circuit relief pressure 3.9 MPa
Boom cylinder diameter × stroke 120 × 1,285 mm
Arm cylinder diameter × stroke 135 × 1,490 mm
Bucket cylinder diameter × stroke 115 × 1,120 mm
Blade cylinder diameter × stroke Not specified
OPERATING WEIGHT
Operating weight with standard bucket, fully serviced + 75 kg operator (ISO)22,600 kg
Ground pressure41.2 kPa
DRIVE
Travel speed (Low / High)3.5 / 6.0 km/h
Maximum travel force208 kN
Gradeability35°
SWING
Swing speed10.7 rpm
DIGGING FORCE
Bucket digging force138 kN
Arm digging force99 kN
DIMENSIONS
Transport length 9,728 mm
Transport width 2,980 mm
Transport height 3,440 mm
Upperstructure width 2,710 mm
Blade height —
Standard track shoe width 600 mm
Track gauge 2,380 mm
Minimum ground clearance 440 mm
Tail swing radius 2,890 mm
Center distance of tumblers 3,640 mm
Overall length of crawler 4,450 mm
Boom length 5,700 mm
Arm length 2,950 mm
UNDERCARRIAGE
Track shoe width 600 mm
Number of track shoes per side 49
Carrier roller per side 2
Track roller per side 9

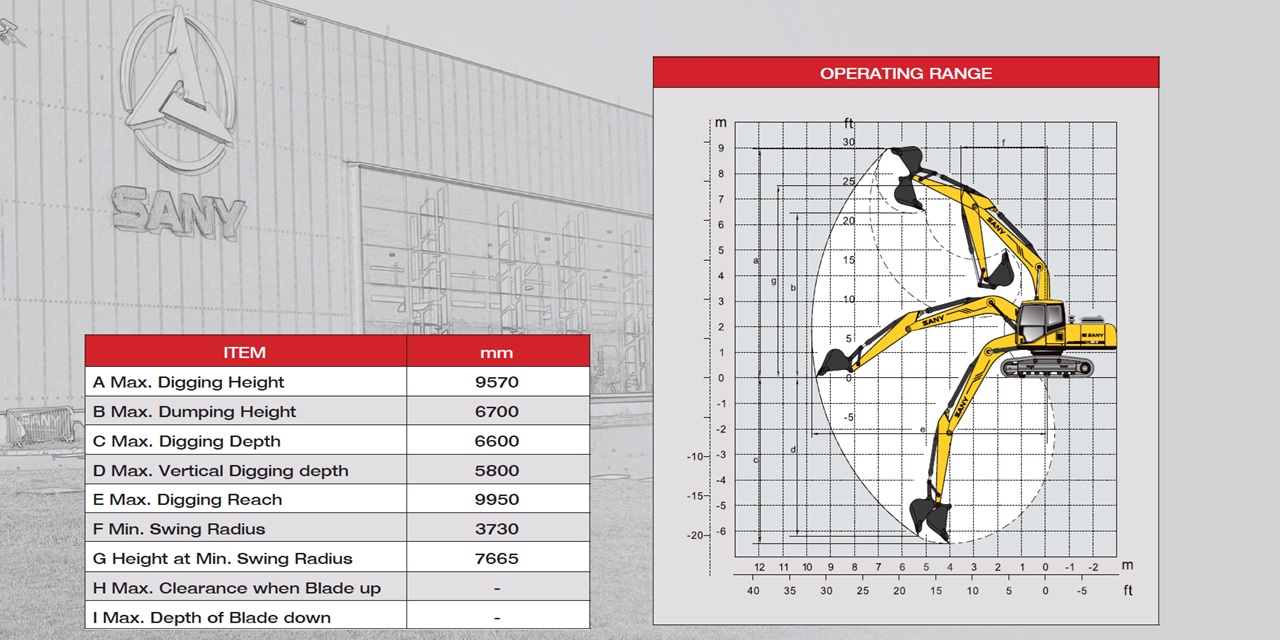

OPERATING RANGE
Maximum digging height 9,570 mm
Maximum dumping height 6,700 mm
Maximum digging depth 6,600 mm
Maximum vertical digging depth 5,800 mm
Maximum digging reach 9,950 mm
Minimum swing radius 3,730 mm
Height at minimum swing radius 7,665 mm
Maximum clearance when blade up —
Maximum depth of blade down —

Working Range:

Lifting Capacities:

Working Height / Depth1.5 m3.0 m4.5 m6.0 m7.5 mMaximum
Configuration 1Configuration 2Configuration 1Configuration 2Configuration 1Configuration 2Configuration 1Configuration 2Configuration 1Configuration 2Configuration 1Configuration 2
+7.5 m    4439.184439.18    3142.4653142.465
+6.0 m    5210.5224631.077    3143.3323143.332
+4.5 m  5905.034466.8164636.0633133.94    3099.0632783.404
+3.0 m  8686.5566388.9096380.6754225.1284523.8423030.997  3182.792540.632
+1.5 m  9504.6565894.3596112.1853985.74396.9782914.621  3381.3532450.684
0 m6663.3016663.3019129.4245577.9325922.2483816.3244296.3742822.335  3717.2712494.175
-1.5 m10708.5710353.899085.8495541.1865840.953743.8264275.6372803.312  4110.752703.045
-3.5 m16360.7710539.839156.2135600.5235882.4533780.837    4996.2233295.599
-4.5 m14691.7410913.019415.9845819.583      6959.2814477.58

Lifting capacities are shown in kg. Refer to the manufacturer’s lifting-capacity chart and machine configuration requirements before lifting operations.

Standard Equipment:

CategoryStandard Equipment
Operator Environment
  • ROPS cabin mounted on silicone rubber
  • Short joystick + multi-functions equipped
  • Mechanical suspension seat
  • Multi-language display
  • Air conditioning C/H
  • Radio
  • 12V/24V outlets
  • Cup holder
  • Document compartment
Working Equipment
  • Boom: Standard 4600 mm
  • Arm: Standard 2500 mm
  • Hydraulic QC line controlled on joystick
  • AUX line — B&Shear / joystick proportional control
  • Rotation line proportional on joystick
  • Fuel filler pump
Upper Structure
  • Battery box
  • Storage box
  • Anti-skid plates
Undercarriage
  • UC-3665
  • Track shoes: 600 mm
  • Carrier roller per side: 1
  • Track roller per side: 7
Lights
  • Roof light: 2×
  • Boom light (left): 1×
Safety
  • Battery master switch
  • Fire extinguisher
  • Emergency hammer
  • Rear mirror
  • Travel alarm and beacon
  • Overload warning for lifting
  • Safety valves — boom
  • Engine emergency cut-off from ground
  • User manual — English

Interested In This Machine?

Get Prices, Availability and Complete Technical details.

Request A Quote
